Overview

The WK800 multi-rotor drone aerial photography and mapping system is made of high-strength carbon fiber material, with a novel and lightweight body design, flexible and stable, and low noise. It supports simulated flight and has a long battery life, making it suitable for operations in cities, towns, and mountainous areas.
The WK800 multi-rotor drone aerial photography and mapping system is simple to operate and easy to transport, and can perform simple and stable flights without too much technical training. It is widely used in geological exploration, remote sensing mapping, environmental protection, meteorological exploration, disaster monitoring, aerial survey, line and pipeline inspection, urban patrol and other fields.

Key Features

High-strength Carbon Fiber

The material has the characteristics of high temperature resistance, friction resistance, heat conductivity and corrosion resistance, which ensures that the drone can protect the components from damage and improve the service life of the drone in a complex and harsh operating environment.

Easy to Operate

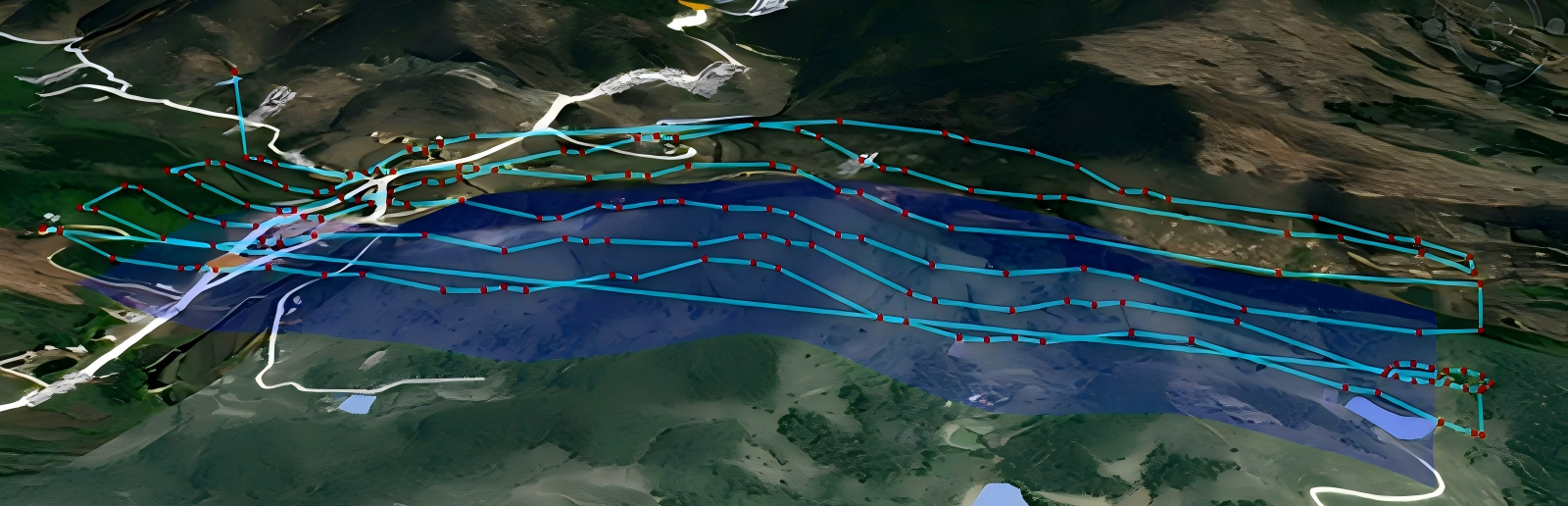

The drone supports flight simulation and adaptation to mountain operations, supports the import of KML and accurately plans the mapping area, as well as automatic figure-of-eight flight and coordinated turning, allowing novices to operate the drone in a short time.

High Efficiency

With the SC100 on board, it can fly for 40 minutes, and can complete data acquisition in a one-time flight over a large survey area.

Self Protection Design

The drone has self-test protection and pre-flight inspection protection to avoid misoperation. It supports low-power automatic return, broken chain automatic return and no-fly zone setting to reduce potential safety hazards.
In addition, it is equipped with magnetic compass anomaly protection, attitude protection and broken shell protection to escort safe operation.

Specification Excerpts

Performances

Flight endurance	≥ 65mins loading 800g
Flight speed max	30km/h (9m/s)
Wind resistance	Class 6 (measured at 5000m altitude)
Payload	≤ 2.5kg
Control radius	≥ 7km
Max operation altitude	5500m
Motor max power	540W/Axial

Physicals

Wheel base	815mm
Landing gear dimension	Span 550mm, Height 300m
Propeller size	22 inches
Unfold propeller diameter	1380mm
Motor size	50mm
Working temperature	-20℃ to +45℃
Storage temperature	-20℃ to +45℃

Electricals

Battery	14000mAh
Electrical current	40A
Voltage	60V
Drive PWM frequency	260Hz
