GNSS AntennasKAN2029
GNSS 3D Choke Ring Antenna
Inquiry
Overview
Key Features
Parameters
Applications
Download
Related Products
Overview
The 3D choke ring antenna adopts the international advanced 3D structure choke design, is equipped with an anti-multipath choke plate, and uses a waterproof and anti-ultraviolet cover, which has the characteristics of stable phase center, high positioning accuracy, and good reception effect at low elevation angle.
Key Features
Stable Anti Electrostatics
Contact discharge ≥ 4kV; Air discharge ≥ 8kV
Super Surge Proof
The unique design takes the surge resistance one step further: ≥4kV
High Waterproof Rating
The antenna survives after soak in 1m water depth for 0.5h.
Long Mean Time Between Failure
Stable design, reliable materials, to ensure the long-term normal operation of the equipment: ≥10000h
Specification Excerpts
Performances
GPS
L1, L2, L5
GLONASSG1, G2, G3
GalileoE1, E2, E5,a E5b, E6
BDSB1, B2, B3, B1c, B2a, B2b
IRNSSL1, L5
L-BandYes
Polarization RHCP
Horizontal coverage angle
360°
Phase center error±1.5mm
Axial ratio≤ 3dB
Impedance≤ 50Ω


Physicals
SizeΦ380*300mm
Weight≤10kg
Working temperature-40℃ to +85℃ (-40℉ to +185℉)
Storage temperature-55℃ to +85℃ (-67℉ to +185℉）




Electricals
Supply voltageDC 3V-16V
Current consumption≤60mA


Applications

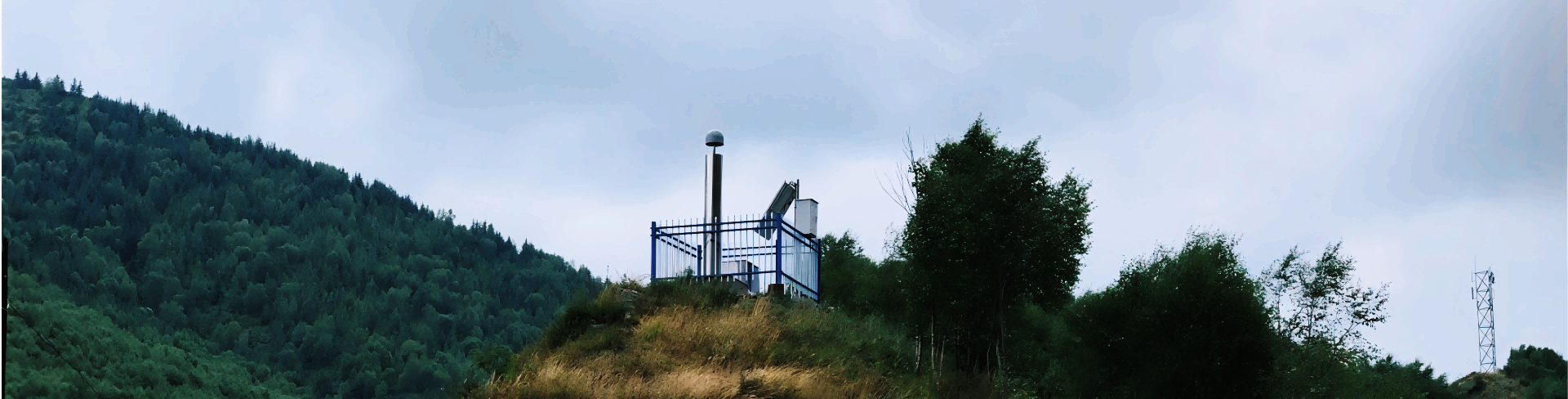

GNSS CORS Networks
