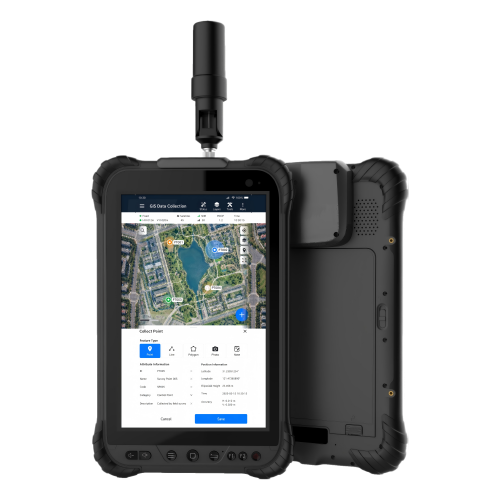

Handheld GNSS Tablet with
RTK Centimeter Positioning Accuracy
RTK Centimeter Positioning Accuracy
| Network mode | GSM,EVDO,WCDMA,TD-SCDMA,TDD-LTE,FDD-LTE |
| Data service | LTE CAT4/HSPA/TD-SCDMA/EDGE/GPRS |
| Supported frequency band | GSM:850/900/1800/1900 EVDO：BC0 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 TDD-LTE: Band38/Band39/Band40/Band41 FDD-LTE: Band1/band2/Band3/band4/band5/Band7/band8/band17/band20/band28A/band28B/band19/band26/band66 |
| Theoretical rate | LTE: CAT4 (150Mbps Downlink 50mbps Uplink) WCDMA: Category 24 HSDPA category 7 HSUPA TD_SCDMA: category 14(downlink) category 6(uplink) GSM: Class 12 GPRS, Edge |
| Operating system | Android13GMS / Android15AER |
| Memory | 8+128G FHD LCD |
| Main screen size | 8.1'' IPS LCD (Corning Gorilla 3) 1280×800 pixel, 700nits sunlight readable optional 8'' IPS LCD (Corning Gorilla 3) 1920×1200 pixel, 500nits sunlight readable Light transmittance: over than 90% |
| Touch screen | Capacitive multi-touch interface for use with gloves and in wet |
| SIM card type | Dual Nano sim & Dual standby |
| Main screen resolution | 1280*800 / 1920*1200 |
| Camera pixel | Rear: 13 megapixels with auto-focus and flash; Front: 5 megapixels optional Rear: 16 megapixels with auto-focus and flash; Front: 8 megapixels |
| Flash | Flash LED*1 |
| Battery charger dock | Input: 9V/3A; Output: 4.35V/1.5A; Compatibility A8003/A1003 series batteries |
| Hand strap | 80.50×96.00mm(Inner); 115×132mm(outter); 4×Screw hole: Ф2.1±0.05mm. |
| Shoulder strap | 80.50×96.00mm(Inner); 140×230mm(outter); 4×Screw hole: Ф2.1±0.05mm; Strap length: 3m (adjustable) |
| Pen | Active pen / Passive pen |
| Screen protection film | 128.44mm × 204.53mm |
| Tactical vehicle mount | Metal/Plastic |
| Pole mount | Metal |
| RTK | Channels 1408 channels, based on NebulaslyTM Constellations BDS/GPS/GLONASS/Galileo/0zSS Frequencies BDS: B1l, B2l, B3l, B1C, B2a, B2b GPS: L1 C/A, L1C, L2P (Y), L2C,L5 GLONASS: G1, G2, G31 Galileo: El, E5a, E5b, E6. QZSS: L1, L2,L5Positioning accuracy: 0.01M+1ppm CEP Cold start/Convergence time: 25 |
| Centering Rod | Centering rod + Pole mount |
| Mushroom antenna | Mushroom antenna (including wires) |
| UHF RFID | Output power range: 18-26 dBm; Receiving sensitivity< -70dBm; Read distance: 4-5 meters 902-928MHz/865-867MHz/840-845,920-925MH |
| 1D/2D Barcode | Honeywell 6703 / Zebra 4710 / NLS-CM60 module Image Sensor: 640*480 CMOS Red light LED625±10nm 2D: PDF417/QR1,2,Micro/ECC200/ECC000,050,080,100,140/Hanxin code. 1D: Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E. UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey; GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Exp) |
| WLAN function supports | 2.4 GHz + 5 GHz, 802.11 a/b/g/n/ac, WiFi 6-ready |
| Data interface | Type C USB 2.0 |
| USB interface | Type C, OTG/headset/NMEA |
| Bluetooth transmission | BT5.1 |
| External interface | 14*back pins Pogo Pin UART/USB/CAN/DCIN/GPIO/USB2.0 |
| Three-proof function supports | IP68 IEC 60529 |
| Body color | Black |
| Size | 235mm ×146mm × 13mm (9.3'' × 5.7'' × 0.5'') |
| Working temperature | '-20 °C to 60 °C (-4 °F to 140 °F) MIL-STD-810G, Method 501.5/502.5 Procedure II |
| Storage temperature | '-30 °C to 70 °C (-22 °F to 158 °F) MIL-STD-810G, Method 501.5/502.5 Procedure I |
| Wristband support | Yes |
| Battery | Standard 3.8V/9000mAh, 34.2Wh. User-replacable |
| Charging method | 5V/2A DC charger |
| Fast charging | QC3.0 fast cherger |
