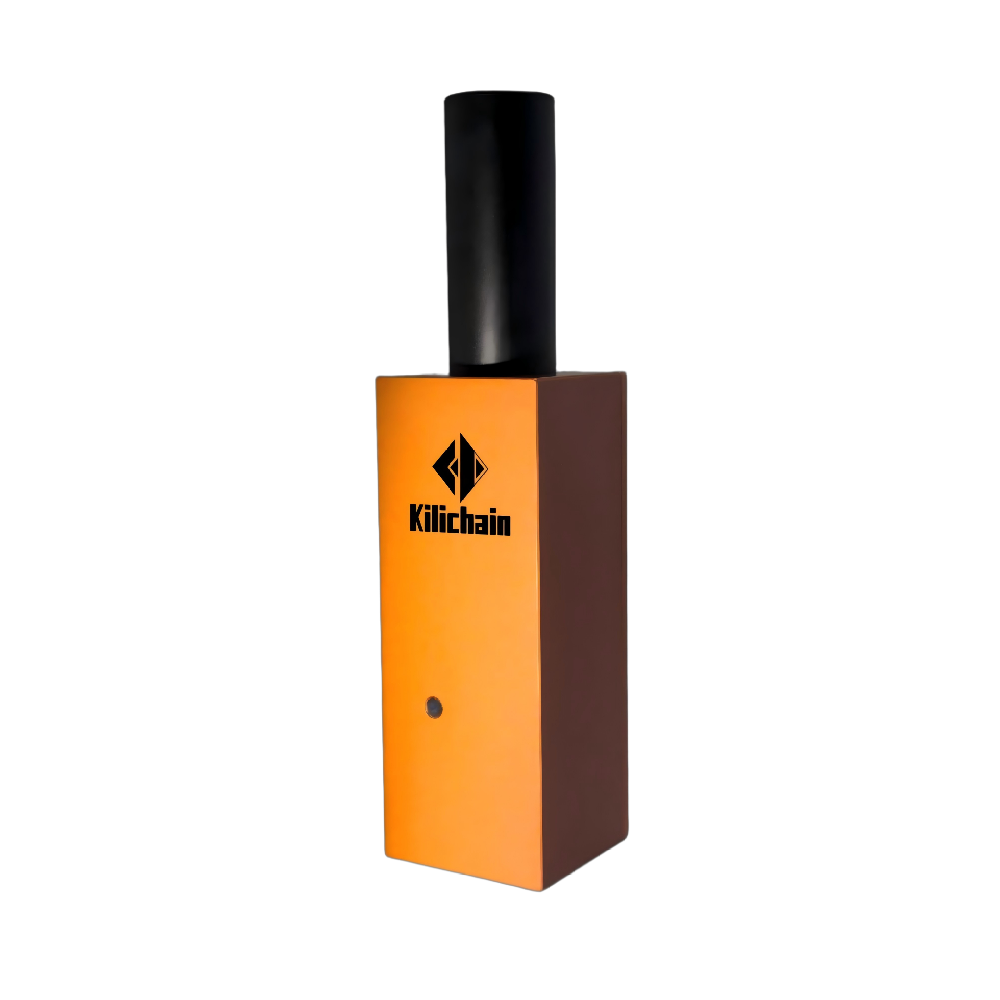

Focux 3-GNSS Smart Antennas-Kilichain

Overview

Providing technical and product support for enterprises to reduce costs and increase efficiency is one of our customer-centric business landing points. GNSS Focux 3 focuses on high-precision coordinate data acquisition. It is based on the modular design concept and has an external power supply to achieve the goal of ultra-long battery life, providing customers with a new way to achieve uninterrupted operation.

Key Features

New Product Concept

Focux 3 adopts a new design concept and understanding of the equipment, uses a simple design language, and an ultra-light design, providing a new design language and tool selection for surveying and measurement.

Constellation Multi-Band

Support BDS, GPS, GLONASS and Galileo systems, continue to ensure a centimeter-level positioning accuracy.

Interesting Shape

The device adopts a more fashionable and simple appearance design, integrating beauty and practicality.

Modular Design

Product design is based on modular design concept to adapt to more detailed market demands. The external power supply can respond to the requirements of extra-long measurement time and achieve the goal of completing project surveying and mapping in one go.

Specification Excerpts

Performances

Channel	1408
GPS	L1C/A, L2P(W), L5
GLONASS	G1,G2
Galileo	E1, E5a, E5b
BDS	B11, B2I, B3I, B1C, B2a
QZSS	L1, L2, L5
Positioning rate	Maximum 20 HZ
Real time kinematics (RTK)	Horizontal: 8mm + 1ppm RMS Vertical: 15mm + 1ppm RMS Initialization time: < 10 s Initialization reliability: > 99.9%
Single point	Horizontal: 1.5m Vertical: 2.5m

Physicals

Size	107.6mm×40mm×38mm
Weight	120g
Working temperature	-45°C to +75°C (-49°F to +167°F)
Storage temperature	-55°C to +85°C (-67°F to +185°F)

Electricals

Input voltage	DC5V ≤1A
Battery capacity	External Power Supply
Power consumption	＜ 0.5W
Battery life	Depends on the particualr external power supply

*All specifications are subject to change without notice.

(1) Accuracy depends on the open sky, free of multipaths, optimal GNSS geometry and atmospheric condition. (2) Battery life is subject

to the particular power supply.
